EN853 2SN – 2 wire braided hydraulic hose,Flexiable and Excellent bend radius

Short Description:

Standard: Meet EN853 2SN/ ISO 1436-1 Type 2SN /SAE 100R2 AT
Application: Petroleum base hydraulic fluids and lubricating oils.
Inner Tube: Oil Resistant Synthetic rubber.
Reinforcement: Two braid steel wire.
Out Cover: Oil & Ozone Resistant Synthetic rubber.
Temperature Range: -40°F to  +212°F (-40°C to +100°C).


Product Detail

Product Tags

icon05 icon06 icon07 icon03 icon02 icon04 icon01
Part No. Hose I.D. Hose O.D. Max
Working Pressure
Min
Burst Pressure
Minium
Bending Radius
Weight of Hose
DIB-2SN inch mm inch mm psi Mpa psi Mpa inch mm lbs/ft g/m
-6 1/4 6.6 0.59 15.1 5800 40.0 23200 160.0 3.15 80 0.23 360
-8 5/16 8.1 0.65 16.6 5100 35.0 20400 140.0 3.54 90 0.28 435
-10 3/8 10.0 0.74 18.7 4780 33.0 19120 132.0 3.94 100 0.34 535
-12 1/2 13.0 0.85 21.7 4000 27.5 16000 110.0 3.94 100 0.4 630
-16 5/8 15.9 0.98 25.0 3620 25.0 14480 100.0 4.72 120 0.47 740
-19 3/4 19.0 1.15 29.1 3120 21.5 12480 86.0 5.51 140 0.58 920
-25 1 25.4 1.49 37.9 2400 16.5 9600 66.0 7.09 180 0.9 1415
-31 1.1/4 31.8 1.85 46.9 1800 12.5 7200 50.0 8.66 220 1.21 1915
-38 1.1/2 38.1 2.12 53.9 1300 9.0 5200 36.0 10.24 260 1.43 2255
-51 2 50.8 2.62 66.6 1150 8.0 4600 32.0 12.60 320 1.9 3005

Two-Wire Braided Hose

Two-Wire hydraulic hoses are fundamental fluid conveyance solutions for various equipment and applications with wide operating pressure ranges, optimal levels of abrasion resistance, long-lasting durability and high-performance transfer capabilities.

Common applications include

Hydraulic system service with petroleum and water-based fluids, for general industrial service.
Petroleum and fire-resistant hydraulic fluids, fuel and lubricating systems
Low temperature flexing and hydraulic system service with petroleum and water-base fluids

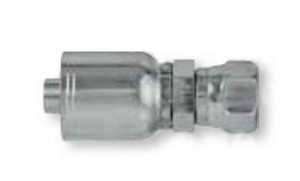

K series hose fittings
interchangeable with Kurt fittings
and Weatherhead U series

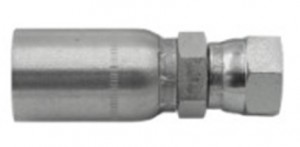

43 series hose fittings
Interchangeable with Parker 43 series fittings
